Fuel And LPG Equipment
Positive Displacement Flow Meter
Industries
• Automotive;
• Adhesives;
• Agriculture;
• Asphalt ;
• Aviation fueling ;
• Animal feeds; Beverage;
• Cosmetics ;
• Chemical processing;
• Concrete Add mixtures;
• Dairy; Liquid fertilizers;
• Food processing ;
• Fuel oil delivery;
• General industrial;
• Hydrocarbon processing;
• Liquefied gases;
• Lube oils; Marine;
• Paint and varnish;
• Petroleum marketing;
• Petroleum production ;
• Pharmaceutical;
• Printing ink;
• Pulp &paper;
• Refining commercial Solvents;
• Recycling Railroad ;
• Textile.
Characteristics
•Excellent stepless adjusting mechanism allows a micro adjustment of the meter
•High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
•Low maintenance, no metal-to-metal contact in measuring chamber, long life service
•Low pressure loss, a true gravity flow meter
•Accuracy regardless of pressure fluctuations, temperature variation, viscosity
•Choice of aluminum, cast iron and stainless steel materials of construction
Application
• Refined petroleum products;
• Aviation gasolines and jet fuels;
• A wide variety of products such as: liquid sugars, corn syrup, corn
sweetners, dextrose,fructose, sucrose, maltose, lactose, corn oil,
soy bean oil, cotton seed oil, coconut oil;
• Treated waters (deionized, demineralized, and potable);
• Chlorinated solvents and general solvent metering;
• Acid pH liquids;
• Liquefied petroleum gas(LPG);
• Crude oil, also for heated and/or viscous liquids;
• Oil or water based latex products, polyester resins,
and adhesives (neutral pH), also for metering herbicides and
nitrogen fertilizer solutions;
• Herbicide;
• Sodium hydroxide (caustic) solutions, high sulfur crude oil (LACT
and NOD) and other alkaline pH liquids;
• Abrasive liquids.
Characteristics
•Excellent stepless adjusting mechanism allows a micro adjustment of the meter
•High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
•Low maintenance, no metal-to-metal contact in measuring chamber, long life service
•Low pressure loss, a true gravity flow meter
•Accuracy regardless of pressure fluctuations, temperature variation, viscosity
•Choice of aluminum, cast iron and stainless steel materials of construction
Application : LPG Gas cylinder filling
Pumping LPG from underground storage
Bulk filling
Loading / Unloading of bulk LPG gas truck or trailer
Description :
The DB-65 multistage pump, centrifugal and side channel, is designed with 6 stages, having a horizontal configuration, shaft sealing by mechanical seal without cooling, for handling LPG (liquid gas ), the liquids involving high-differential pressure, low NPSH conditions and aerated liquids up to 50% gas, such as pumping from underground tanks. The use of a pre-compression turbine at the suction end makes it possible to obtain a very small required NPSH, so that this pump can be used under very difficult suction conditions.
Application : LPG Gas cylinder filling
Pumping LPG from underground storage
Bulk filling
Loading / Unloading of bulk LPG gas truck or trailer
Vaporizer feed pumps
Model : DB-65 LPG Gas sides channel pump
Advantage
Economic alternative to submersible designs.
Meeting multiple demands for low or high flow
rate with high differential pressure in LPG
application. This pump is an ideal pump for two
dual hose LPG dispensers.
Continuous duty design.
Easy to use and economic.
Model : LWB-150 LPG Gas turbine pump
Advantage
Innovative cam design virtually eliminates cavitation.
New materials utilized in cam & blades, and heavy duty
bearings extending pump life.
Single mechanical seal, easy seal replacement and
maintenance.
Large non-metallice pins are suitable for higher pump speed.
Model : LYB-2000 LPG Gas Vane Pump
Description
LYB-2000 LPG vane pump is positive displacement pump,
which is specially designed to perform in such severe operating conditions as high differential pressure, pump over speeding, poor suction conditions. It has V-belt or direct-drive mounting with gear reducer for option.
Model : YQB3-5 LPG Gas Vane Pump
​
YQB Serial Pump is a positive displacement vane pump , the operation is based on centrifugal sliding of vanes , and the flow is relation to the rotation speed axle , this pump feature is excellent sealing ,stable performance and high flow rate ,high different pressure , can meet different application’s demand .
Application
LPG Gas cylinder filling , transfer , unloading / loading LPG truck ,trailer etc

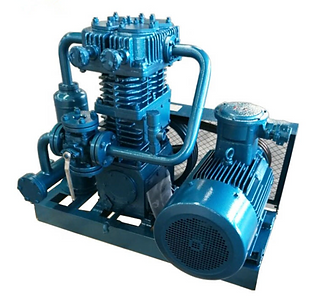

LPG Gas Compressor
ZW (ZW) series of liquefied petroleum gas recycle compressor is vertical, single acting, air-cooled, oil-free lubrication, reciprocating piston unit. This series compressor cylinder & packing components are oil-free to ensure the purity of its working medium. Crankshaft, connecting rod, crosshead components are pressure lubrication (splash lubrication) to ensure the reliability of lubrication. Excellent complement, satisfied performance, light weight, small occupying area, more compressing ratio, smooth running, long service life of spare parts, simple operation, reliability and easy maintenance. ZW series compressors have both fixed or movable types; both normal atmosphere (0.1~1.5MPa) and high pressure (1.6~2.4MPa) to meet different requirements of customers.
Applications
It is suitable for working in large, middle and small LPG storages, conveying and distribution stations, bottle filling stations, gasification stations, gas mixing stations and tank vehicle loading and has the functions of vehicle loading, unloading, bottle filling, bottle emptying, conveying, residue removal and residual gas recycling and it can be also used in the processes of other petrol-industries.
LPG Gas Filling Weight Scale
Characteristics
LPG-100 liquefied petroleum gas filling machine is a machine that can check, tare, ration and measure weight. This filling scale is combined with reliable hardware design and scientific software technology, it adapts superior load cell, solenoid valve and advanced microcomputer control, it integrates filling and checking as one set. This filling machine is the first choice of the liquefied petroleum gas filling factory and the liquefied petroleum filling station.
